Enter the ArchiveLink version expected by the SAP system. Ask SAP administrator for more details.

Enter the IP or server name of the ImageMaster application i.e. the ContentServer.

Enter the ImageMaster application server port.

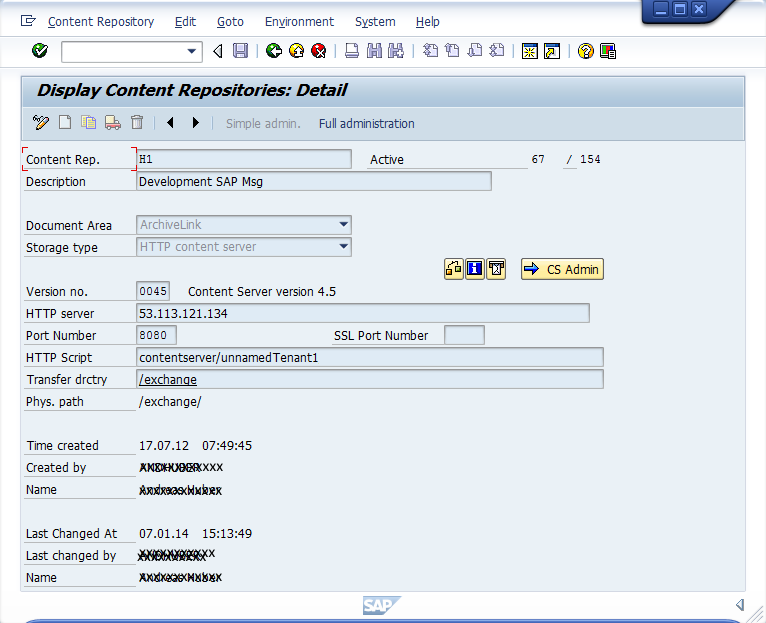

The http context where SAP can find the ContentServer functions. The example figure shows the default tenant to use, if no further tenants were activated: contentserver/unnamedTenant1

Do not use a slash in the ending as this corrupts the syntax in some internally generated web service requests!

Check the connection by clicking the following icon:

Send the certificate of the SAP system to the ImageMaster Content Repository by clicking the following icon:

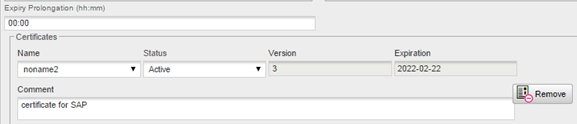

Activate the certificate in the ImageMaster Content Repository configuration. The certificate is used to decode the checksum sent with the ArchiveLink request. See below.
