All web services should be accessible from the Coordinator machine, i.e. in particular the administration web service and the Integration web service. To check the accessibility open a web browser and try to access the corresponding WSDL URLs:
-
https://<imaServer>:<imaPort>/adminwebservice/ImaMsxService?wsdl
-
https://<imaServer>:<imaPort>/integrationws/ImaDocumentService?wsdl
The service name is case-sensitive, so mind the correct spelling!

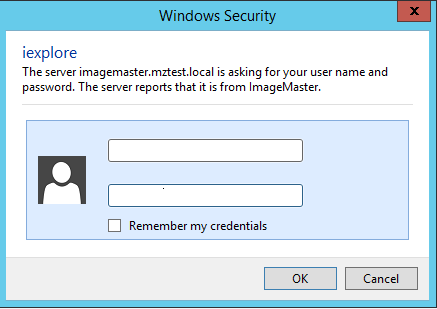

Due to the configured security realm the following dialog asking for user credentials appears in Internet Explorer:
Figure 321: Windows security dialog
If output like the following is displayed in the browser, where the images below only show the beginning part, the connection is successful:

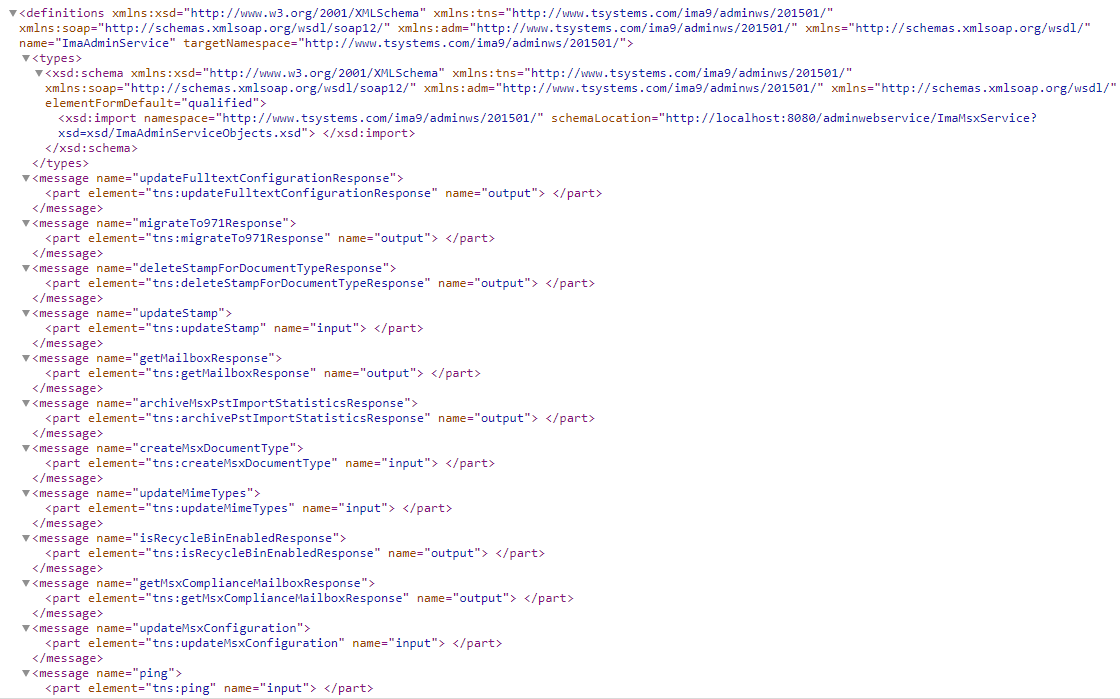

Figure 322: Checking the ImaMsxService availability

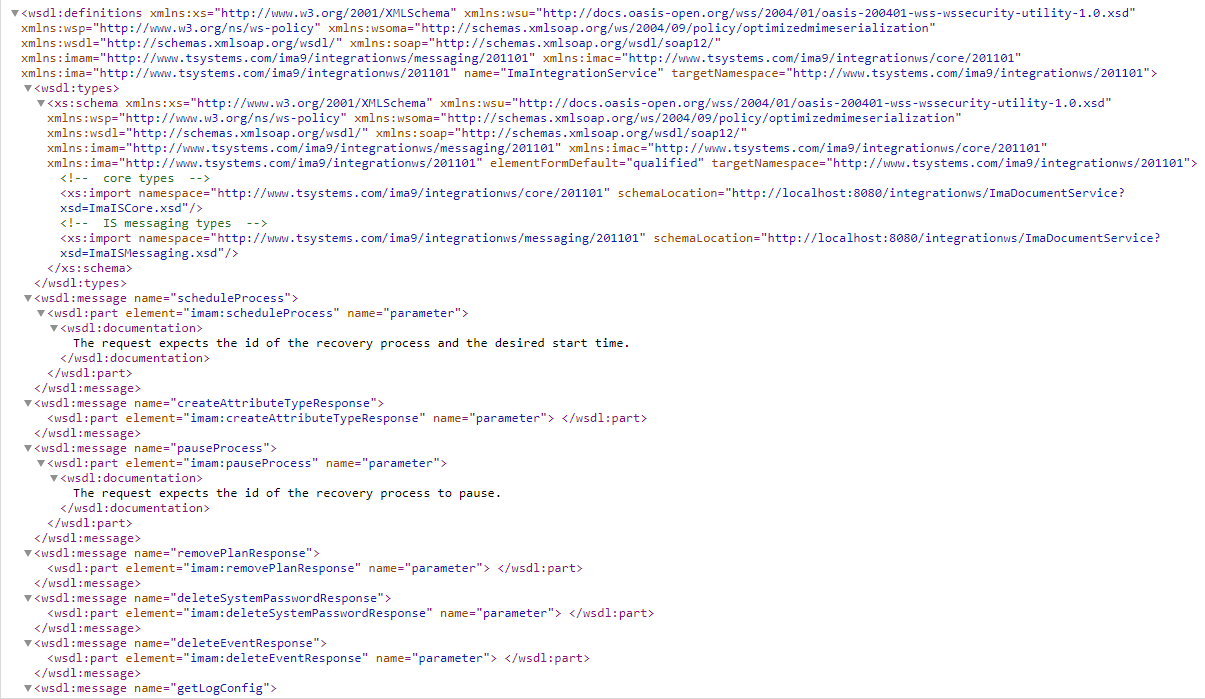

Figure 323: Checking the ImaDocumentService availability
