Microsoft Azure

ImageMaster supports Microsoft Azure storage, which requires configuration via the dialog shown below:

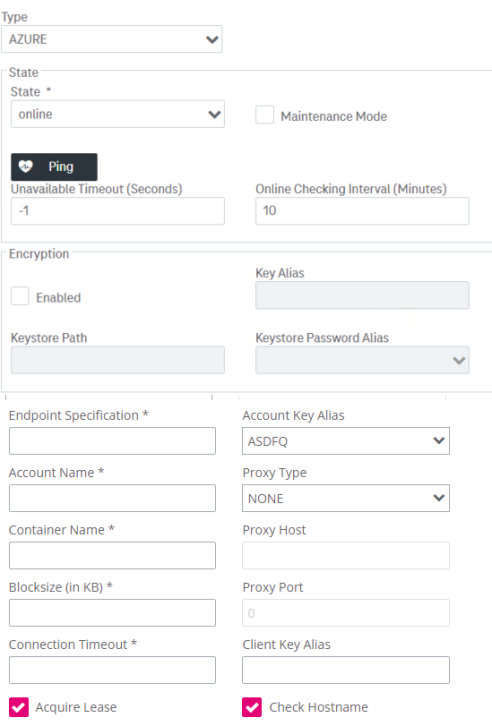

Figure 84: Archives – Azure archive properties

See the table below for Azure parameter descriptions.

Parameter

Mandatory

Description

Endpoint Specification

Yes

The endpoint specification for Azure storage BLOB access

Examples:

  • DefaultEndpointsProtocol=http

  • DefaultEndpointsProtocol=https

  • UseDevelopmentStorage=true

  • BlobEndpoint=URL

Account Name

Yes

The account name for Azure access

Container Name

Yes

The container will be created if it does not exist.

Blocksize (in kB)

Yes

The block size for writing blob blocks

Maximum size is 4 MB (4096 kB) per block. The block size defines the maximal size of a blob (max= blob block size * 50000) = 200 GB). During the archiving of one blob, the size for a block is reserved in the RAM.

Example: If you specify a blob block size of 65 kB, you are able to archive files with a maximal size of 3 GB.

Connection Timeout

Yes

The timeout for a connection for writing blocks (in seconds)

The recommended value is 100 seconds.

Acquire Lease

N/A

If selected (which is the default state), an infinite lease is acquired that protects the BLOB from external deletion.

Account Key Alias

Yes

The account key for Azure access

Proxy Type

N/A

The following values are supported:

  • NONE

    No proxy is used.

  • SYSTEM

    The proxy is specified via the JVM settings “…proxyHost” and “…proxyPort” on the application server. See Proxy settings for archive connection in [IM ImageMaster].

  • DEDICATED

    The settings Proxy Host and Proxy Port are specified directly in this configuration dialog (see next parameters).

Proxy Host

Depends

The host of the proxy, which is mandatory in case of the Dedicated proxy type

Proxy Port

Depends

The port of the proxy, which is mandatory in case of the Dedicated proxy type

Client Key Alias

No

The client key alias that will be used for certificate-based authentication in HTTPS

Check Hostname

N/A

If selected (which is the default state), the server certificate hostname will also be checked in the authentication process.

Table 23: Archives – Azure
