MIME type mapping (to SAP document classes)

This configuration defines how MIME types in ImageMaster are mapped to SAP document classes when registering a document from ImageMaster in SAP.

Other MIME type-related mappings also exist. The following configuration is independent of those mappings, which are summarized in the section Mappings in the context of MIME types below.

The MIME Type Mapping sub-tab presents the list of currently known SAP document classes and their mapping to MIME types, which are also available in an ImageMaster environment:

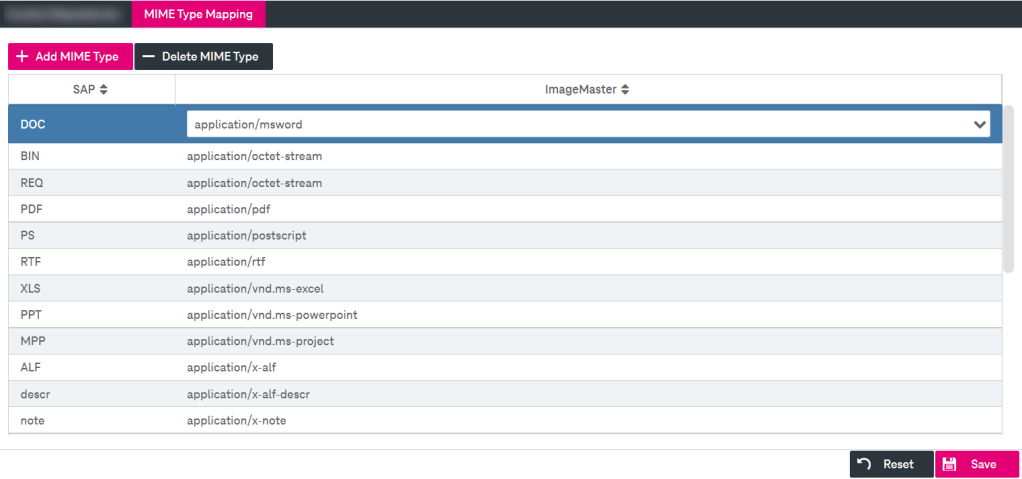

Figure 154: SAP – Content Server: MIME type mapping

The following operations with repositories are available:

  • change a MIME type mapping

  • add or delete a MIME type for SAP

To change a MIME type mapping

  • Click the line to be edited and an arrow for a drop-down list will appear.

  • Click the down arrow to see the list of all MIME types available in ImageMaster.

  • To configure the list of available MIME types, go to System > Operational Settings > MIME Types. Also see chapter MIME types (system configuration).

  • Select a new entry from the list.

  • Click Save.

To add a MIME type

  • Click Add MIME Type.

    The dialog is displayed:

  • Enter the name of the custom MIME type.

  • Click OK. The new line appears at the bottom of the list.

  • Click the down arrow and select an entry from the list of available MIME types.

  • Click Save.

To delete a MIME type

  • Select the line of the MIME type to be deleted.

  • Click Delete MIME Type and confirm.

  • Click Save.

Mappings in the context of MIME types

There is a separate ERP mapping in which MIME types reported by SAP are mapped to the file extensions of ImageMaster attachments. This is described in the section “ArchiveLink → MIME type to file extension mapping” in the ERP system manual [SM ERP].

ImageMaster includes a general MIME type mapping that controls how the integrated viewer handles specific content types. This ensures that content supplied via the SAP content server can also be viewed by ImageMaster clients. The mapping is provided by default and usually does not require changes. Configuration is only needed in rare cases, such as when new SAP document classes must be mapped to existing MIME types at a later stage. See section MIME types (system configuration).
