NetApp ONTAP

ImageMaster supports NetApp ONTAP storage, which requires configuration via the dialog shown below:

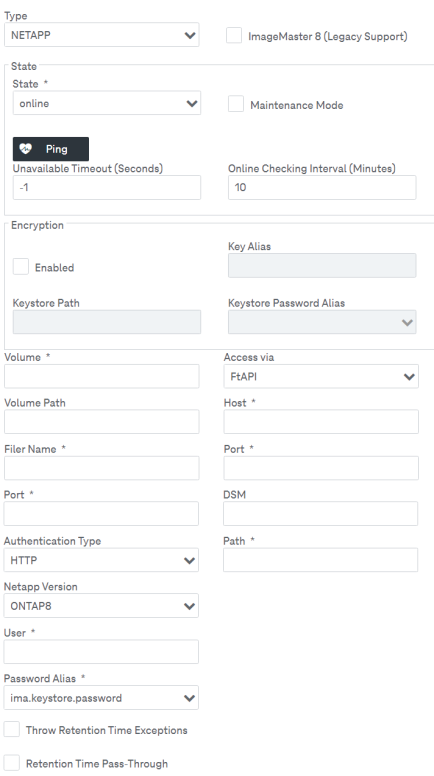

Figure 85: Archives – NetApp archive properties

NetApp properties are split into two parts. In the right part of the screen, configure a connection to a NetApp storage. In the Access via drop-down, select a connection type:

In the left part of the screen, configure the NetApp parameters related to archives retention management; see the table below for NetApp parameters description.

Parameter

Mandatory

Description

Volume

Yes

The name of the volume where the archive is located

Displayed only in case Netapp Version is set to “ONTAP9”

Volume ID

Yes

The ID of the volume where the archive is located

Displayed only in case Netapp Version is set to “REST”

Volume Path

No

The volume path of the archive

This is the additional relative path of the archive inside the volume, for example:

If the volume is “VOL1” and the archive is placed in the directory “employees/archive” under “VOL1”, the Volume Path will be “employees/archive”.

If “/data/vol1” is the mount point of the volume “VOL1”, in contrast to the volume path, the absolute path in the archive (ftp or sftp) is “/data/vol1/employees/archive”.

If the configuration entries for “Path” and “Volume Path” are inconsistent, the archive will be corrupted!

Filer Name

Yes

The name of the NetApp Filer

Port

Yes

Port of the server

Authentication Type

Yes

Transport type (HTTP / HTTPS)

Netapp Version

Yes

Supported versions of NetApp

The following options are available:

  • ONTAP 8

    Starting from ImageMaster version 9.14.1.1, ONTAP 8 is no longer supported. An error will be displayed if you try to save the configuration with ONTAP 8 selected.

  • ONTAP 9

  • REST: If selected, the ONTAP REST API is used to access the NetApp storage system. The access will be defined using Volume ID

User

Yes

The username

Password Alias

Yes

The password alias for accessing the NetApp

Throw Retention Time Exception

N/A

  • If unchecked (the default state), the available maximum time is set as a retention time

  • If checked, a retention exception is thrown if the retention time to set is greater than the maximum time which can be set on the storage system

    Be aware of limits depending on the storage type and check the exact limit that applies in your individual case. NetApp, for example, supports a maximum retention period of 30 or 70 years [NetApp Retention]. Any attempt to assign a longer retention period can result in an error with a message like the following during the archiving process: “DOC-00040: failed to assign a retention plan template”. Also see Retention management configuration.

Retention Time Pass-Through

N/A

  • If unchecked (the default state), retention times are not written

  • If checked, possible retention times are written to the underlying file system that supports hardware retention times

Access via

Yes

Defines the actual archive type to be used in the NetApp configuration

For properties of this archive refer to the respective archive types.

NOTE: If you select access via FTP or SFTP, do not activate the option “Mark Files Read Only”!

Table 24: Archives – NetApp
