JobMode 50 – module HRDMS

This JobMode is contained in a module package, which can be included in cold.<SpoolType>.ini as follows:

IncludeExternalModule = HRDMS::ZRK

Since the package is customized, the currently specified values are listed in the parameter overview as well.

Parameter

Value

Source File

See JobMode 1

Output

See JobMode 1

Configuration Parameters with Customized Default Values

<PackingCommand> = /bin/zip -r [PATH]/[ZIPFILE] .

ZRK_BarcodeCol = 7



ZRK_ClientName.<xxx>

To determine the target system in the ZIP filename, the configured ZRK_ClientName keys are accessed. Examples:

ZRK_ClientName.010 = DTI

ZRK_ClientName.020 = TCOM

..

ZRK_ClientName.090 = TMO

(see example below where 090 results from the base directory name “EPA_IA_090”)

..

Table 160: Packing: JobMode 50 – module HRDMS

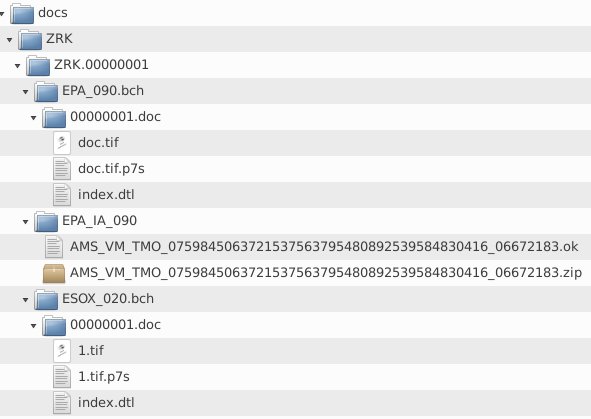

Docs directory after Packing:

Docs directory after packing

For each directory below “EPA_IA*” a separate ZIP file is created. Its name is structured as follows:

  • AMS_VM: Source system

  • TMO: Target system

  • 0759…416: Barcode

  • 06672183: Generation number
