SAP Router Strings should be used to access SAP Systems protected by a firewall. SAP Router Strings are supported in the ImageMaster SAP System configuration tab. Since there is no explicit definition from SAP in what data destination properties to use the SAP Router String it is put into the jco.client.ashost property where it worked well in the past. An explicit property named jco.client.saprouter is available in the SAP documentation but not further described with which other properties to use.

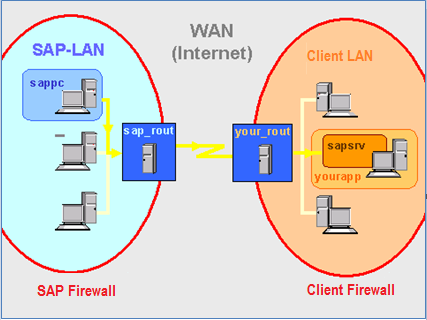

Figure 455: SAP router string
Syntax of the SAP Router String: (/H/host/S/service/W/pass)*, H, S, and W have to be uppercase.
-
/H/ the hostname (at least two characters long)
-
/S/ optional service port
Default value is 3299.
-
/W/ optional password for the connection from ancestor to the successor on the route
Default value is no password “”.
