SAP messaging configuration

You can do the following actions with SAP systems:

• add or delete systems

• configure basic (system) properties

• configure additional custom properties

To add an SAP system

• Click Add System. The System Name dialog is displayed:



• Enter a system name and click OK.

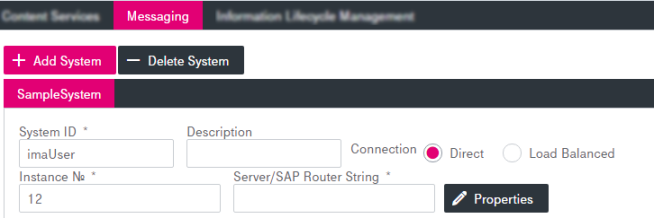

  A new tab for the created system appears (see figure SAP – messaging). The system name is a common name used for a configuration, and a unique system ID must be specified additionally.

• Adjust system properties as described in sections To configure basic properties and To specify custom properties.

• On the panel below, configure system clients and specify transfer configurations for each client.

  See chapters SAP messaging client configuration and SAP transfer configuration for details.

• Click Save.

To configure basic properties

• Select an existing system tab.

• Set the basic system properties according to table SAP system configuration. Mandatory fields are marked with an asterisk (*).

• Click Save.

To delete an SAP system

• Select the tab of the system to be deleted.

• Click Delete System and confirm the deletion in the dialog.

• Click Save.

To specify custom properties

• Select a tab for a system to be provided with additional properties.

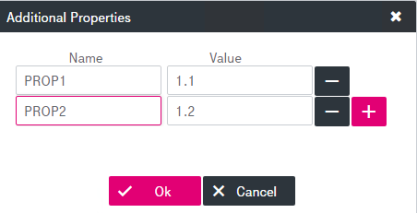

• To configure custom properties, click Properties: the Additional Properties dialog is displayed.



• Enter the Name and Value for the custom property. The properties which are supported here are SAP Java Connector (SAP JCo) properties. For the list of all available properties see appendix SAP JCo properties.

• Optionally use the plus sign to add a new line to specify a new property. Use the minus sign to delete an added line.

• Click OK when ready. The custom properties are specified though not yet persistent.

• Click Save.

  Be careful when specifying additional properties, as your custom property value will override a system property value with the same name. For the list of properties that will not be replaced, see [SM ERP].

Basic SAP system properties

Parameter	Mandatory	Description
System ID	Yes	Identifier of the system The system ID must be unique among all systems.
Description	No	Description of the SAP system
Connection	Yes	Select the connection options. When the configuration is selected, further mandatory input fields become available. Direct selected (default): The mandatory Instance № and Server parameters are displayed. Load Balanced selected: The mandatory input fields Message Server, R3 Name and Group are displayed.
Instance No, Server / SAP Router String	Yes	Displayed if Direct connection is chosen Enter the Instance Number URL / IP address of the SAP system.
Message Server, R3 Name, Group	Yes	Displayed if Load Balanced connection is chosen Define SAP load balancer access parameters.
Table 43: SAP system configuration
