It is possible to define an arbitrary number of clients for a selected SAP system.
You can do the following actions with SAP clients:
-
add or delete clients
-
configure basic (client) properties
-
configure additional custom properties
To add an SAP client
-
Click Add Client. The new client dialog is displayed.
-
Enter a client name and click OK.

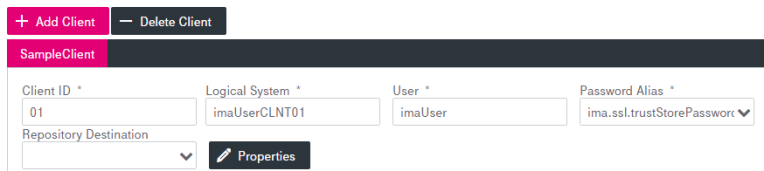

A new tab appears (see figure SAP – messaging: client configuration panel ).
-
Adjust the client properties as described in sections To configure basic properties and To specify custom properties.
-
On the panel below, configure transfer configurations(s). See chapter SAP transfer configuration for details.
-
Click Save.
To configure basic properties
-
Select an existing client tab.
-
Set the basic client properties according to table SAP client configuration. Mandatory fields are marked with an asterisk (*).
-
Click Save.
To delete an SAP client
-
Select the tab of the client to be deleted.
-
Click Delete Client and confirm the deletion in the dialog.
-
Click Save.
To specify custom properties
-
Select a tab for a client to be provided with additional properties.
-
To configure custom properties, click Properties.

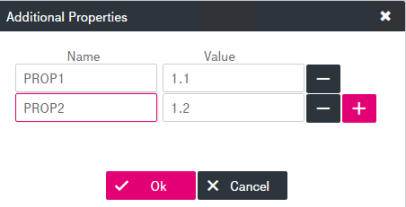

The Additional Properties dialog is displayed:
-
Enter the Name and Value for the custom property. For the list of all available properties, see appendix SAP JCo properties.
-
Optionally, use the plus sign
to add a new line to specify a new property. Use the minus sign
to delete an added line. -
Click OK when ready. The custom properties are specified though not yet persistent.
-
Click Save.
Custom property values will override existing system property values with the same name.
Also see SAP JCo properties in the system manual [SM ERP MSG], which provides a list of JCo properties that will not be overridden.
Basic SAP Messenger client properties
|
Parameter |
Mandatory |
Description |
|---|---|---|
|
Client ID |
Yes |
The parameter indicates the client identifier. The input value must be a number between 0 and 999. |
|
Logical system |
Yes |
Logical system from SAP is filled automatically when the Client ID is changed. |
|
User |
Yes |
Enter username for the client. |
|
Password Alias |
Yes |
Select password alias to be used for the authentication. |
|
Repository Destination |
No |
Optionally select from the list one of the already existing systems as a repository destination to redirect usage of a connection for SAP repository access. |
