Configure SAP Business Technology Platform (BTP)

Create a subaccount, if it does not already exist:
- Go to BTP Cockpit, e.g. https://emea.cockpit.btp.cloud.sap/cockpit
- Create a subaccount and space: https://help.sap.com/docs/document-management-service/sap-document-management-service/creating-subaccount-and-space
Create a “Document Management Service, Integration Option” service instance:
- Create a service instance of “Document Management Service, Integration Option” using the desired plan and the previously created space: https://help.sap.com/docs/service-manager/sap-service-manager/creating-service-instances-in-cloud-foundry?locale=en-US
  - It is sufficient to follow the section “Creating Service Instances from your Subaccount”.
  - The optional step “Configure instance parameters” is not necessary.

In the instance, create a new service key: https://help.sap.com/docs/service-manager/sap-service-manager/creating-service-keys-in-cloud-foundry?locale=en-US

The following properties from this key are required for the next steps of the setup:

Service key property	endpoints → ecmservice → url
Client ID	uaa → clientid
Client Secret	uaa → clientsecret
Token Service URL	uaa → url

Create an HTTP destination:
- In SAP BTP, go to Connectivity → Destinations and create a new destination.
- Insert the required parameters:
  - Name: Name of the destination to be created
  - Type: HTTP
  - Description: optional
  - URL: Any custom URL, will be used in Cloud Connector configuration
  - Proxy Type: OnPremise
  - Authentication: Basic Authentication
  - Location ID: Optional
  - User + Password: Any ImageMaster user that hat access to the CMIS repository in ImageMaster and the necessary permissions (see Permission concept for the example of a minimal role)
  - Additional Properties: “RepositoryID” = “<cmis repository ID in IM>”

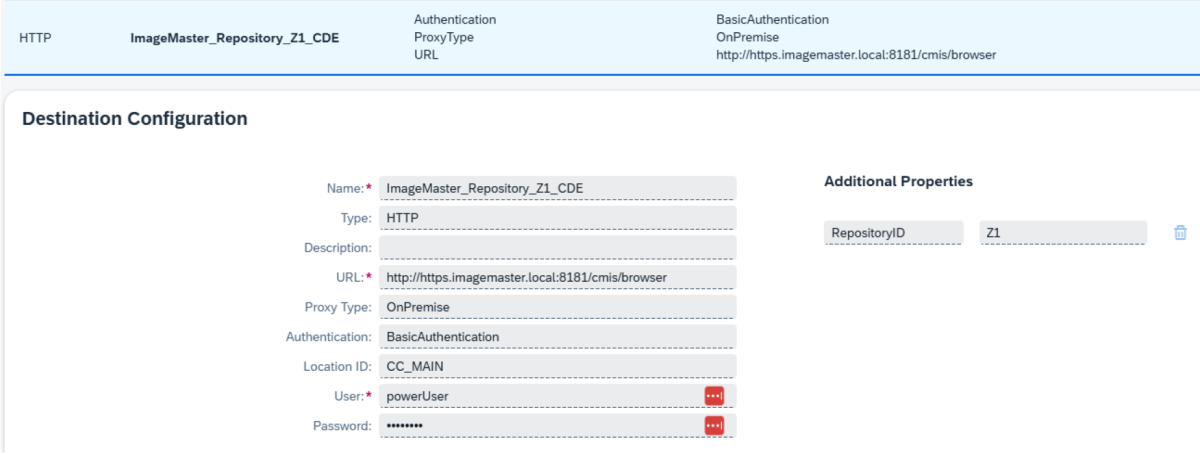

  Example parameters:
Create an external repository in the “Document Management Service” using the “Administrative Operations” API: https://api.sap.com/api/AdminAPI/resource/Repository_Management

To onboard an external repository (Document Management Service’s cloud repository), use the repository onboard REST API with a REST client. The endpoint URL for your tenant can be constructed by concatenating the ECM URL (retrieved from the Document Management Service, Integration Option in the service key) and “rest/v2/repositories”.

An example endpoint is:

https://api-sdm-di.cfapps.eu20.hana.ondemand.com/rest/v2/repositories
- The ECM URL varies depending on the service provider and the region of the subaccount.
- All Document Management Service operations use OAuth2 (OAuth2ClientCredentials) for authentication.
There are multiple ways to include a Bearer token in the request. For details see Bearer token handling in CMIS integration.
- Option 1: Manual token retrieval
- Option 2: Using OAuth 2.0 for automatic token generation
To onboard the repository, send a POST request:

POST to “<ECM URL>/rest/v2/repositories”, e.g.

https://api-sdm-di.cfapps.eu20.hana.ondemand.com/rest/v2/repositories
- with content-type “application/json”
- depending on your selected option (1) with the Bearer token or with (2) “Authorization = OAuth 2.0”.
- Use the following minimal body:

  https://help.sap.com/docs/document-management-service/sap-document-management-service/external-repository

  where
  - destinationName is equal to the destination in BTP
  - repositoryId is equal to Additional Property (BTP) of that destination (and ImageMaster)
  Copy
  Example configuration in POST request body for onboarding a repository
```
{
 "repository": {
 "displayName": "Z1",
 "description": "Repository Z1 on ImageMaster used via Destination and CC",
 "repositoryType": "external",
 "repositoryId": "Z1"
 },
 "connection": {
  "destinationName":"ImageMaster_Repository_Z1_CDE"
 }
}
```
